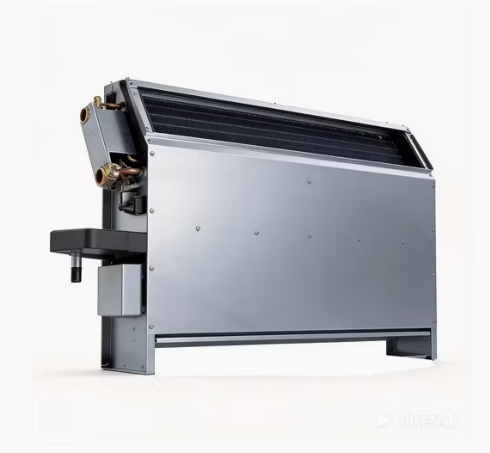

VERTICAL CONCEALED FAN COIL UNIT
PRODUCT OVERVIEW
The vertical concealed fan coil unit is one of the terminal devices of a central air conditioning system. It adopts an ultra-thin vertical concealed structure design with an overall thickness of only 216 mm. The product can be discreetly installed under a window sill, inside a wall, or within an opening of a decorative panel, occupying no effective indoor space and maintaining the overall aesthetic of the interior decoration.
The unit uses chilled water or hot water as a medium. When the cold or hot water flows through the coil, it exchanges heat with the air passing over it, achieving cooling, dehumidification, or heating of the indoor air. The product offers two air supply forms: top air outlet and front air outlet, allowing users to flexibly choose according to on-site installation conditions and decoration styles. The unit operates smoothly with low noise and is suitable for places with high requirements for space utilization and aesthetics, such as conference rooms, halls, and gymnasiums.
PRODUCT FEATURES
ULTRA-THIN BODY, SPACE SAVING
The body thickness is only 216 mm. It can be flexibly installed under a window sill, inside a wall, or within a decorative panel opening, completely concealed, occupying no indoor space, especially suitable for space-limited areas.
TWO AIR OUTLET TYPES
FLEXIBLE CHOICE
Two air supply forms are available: top outlet and front outlet. Users can choose according to room structure, decoration style, and air distribution requirements.
HIGH HEAT EXCHANGE EFFICIENCY
The heat exchanger coil is made of high-quality seamless copper tubes and high-efficiency aluminum fins through mechanical expansion. The staggered copper tubes provide high heat transfer efficiency and low air resistance, ensuring optimal performance.
LOW NOISE OPERATION
An optimally designed impeller and motor matching scheme, combined with strict dynamic balance testing and sound-absorbing insulation material inside the casing, effectively reduces noise and creates a quiet environment.
THREE-SPEED ADJUSTMENT
FLEXIBLE CONTROL
The fan is equipped with high, medium, and low three-speed adjustment, allowing users to regulate air volume and cooling/heating output as needed. Optional electric thermostatic valves and room temperature controllers enable automatic constant temperature control.
CONVENIENT MAINTENANCE
The air inlet is equipped with a washable nylon filter to effectively filter dust. The filter can be removed and installed without tools, facilitating regular cleaning and upkeep.
PRODUCT DETAILS
