Description
Construction

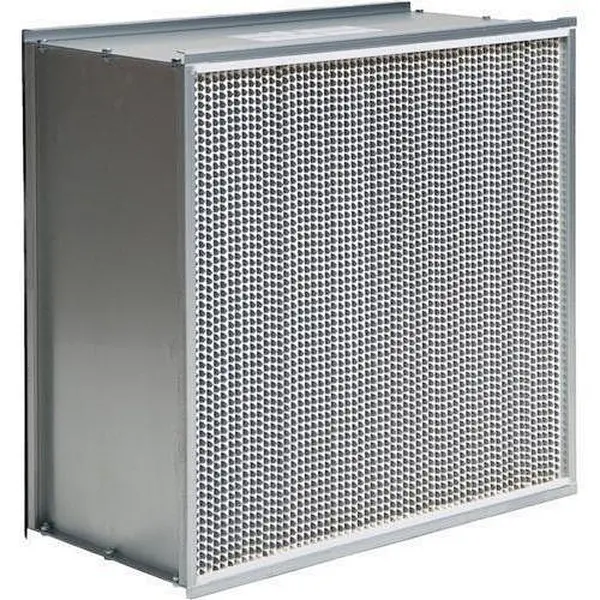

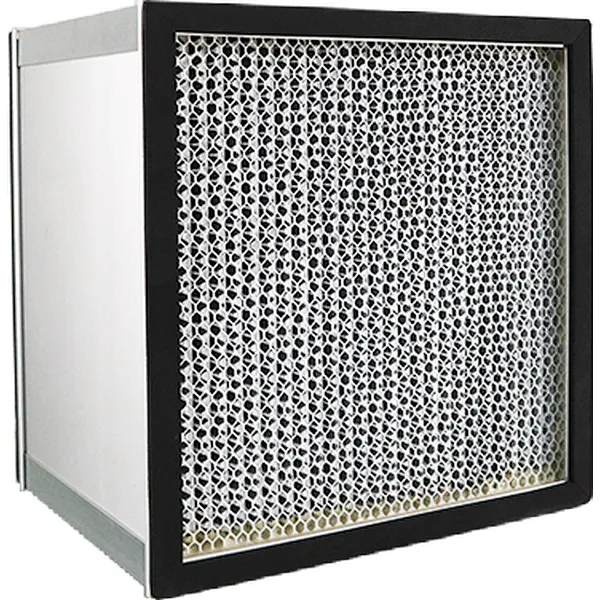

Separator HEPA filter usually uses ultrafine glass fiber filter paper as a filter material, aluminum foil or rubber plate as a separator, and wood frame, galvanized frame, or aluminum alloy frame glued together. This design divides the filter material into several slender channels through corrugated aluminum foil or other dividers, so that the air flow in the filter in a curved path, increasing the contact chance of particles and filter media
Each Separator HEPA filter is tested before shipment to ensure the performance indicators of HEPA air filters. And can be produced according to user requirements, a variety of non-standard specifications, and filtration requirements of high efficiency air filters.
Features
▸Large Specific Surface Area: Increase the thickness of the filter media in the same area
▸Uniform Fold Spacing: The design of the aluminum foil divider enables smooth airflow passage
▸Stable Air Flow, High Filtration Efficiency
▸Aluminum foil dividers are suitable for high temperature or high humidity environments, while paper dividers are suitable for ordinary clean environments
▸Low energy consumption and low backwash water consumption
Application
Widely used in clean rooms, clean workshops, air conditioning systems, end filtration, high-efficiency air outlets, and other purification equipment. It is suitable for pharmaceutical, food, electronics, semiconductor, and other industries, places with high requirements for air cleanliness
| Technical Specification | ||||||||||
| Filter Type | Deep Pleated Filter | |||||||||
| Filter Class (EN 1822) | E10, E11, E12, H13, H14 | |||||||||
| Filter Media & Seperator | Microfine Glass Fiber | |||||||||
| Frame Material | Aluminium / Galvanised | |||||||||
| Separator | Aluminum Foil / White Paper | |||||||||
| Humidity Resistance (Relative Humidity) | 100%RH | |||||||||
|
Dimensions & Technical Details
|
||||||||||||||||
|
Depth
（mm）
|
Size
(mm)
|
Rated Airflow
(m³/h)
|
Filter Area
(m²)
|
Initial Resistance(Pa)
|
||||||||||||
| E10 | E11 | E12 | H13 | H14 | ||||||||||||
| Box Type 150mm Depth | ||||||||||||||||
| 150 | 305×610 | 500/700 | 4.25 | <100/130 | <120/150 | <140/170 | <180/220 | <200/240 | ||||||||
| 610×610 | 1000/1500 | 7.97 | ||||||||||||||
| 1220×610 | 2000/2800 | 15.68 | ||||||||||||||
| 1220×915 | 1200/2400 | 23.60 | ||||||||||||||
| Box Type 220mm Depth | ||||||||||||||||
| 220 | 484×484 | 1000/1600 | 8.2 | <100/130 | <120/150 | <140/170 | <180/220 | <200/240 | ||||||||
| 305×610 | 800/1000 | 6.76 | ||||||||||||||
| 610×610 | 1500/2100 | 12.68 | ||||||||||||||
| 1220×610 | 2800/4000 | 24.95 | ||||||||||||||
| 1220×915 | 3800/5400 | 37.54 | ||||||||||||||
| Box Type 292mm Depth | ||||||||||||||||
| 292 | 305×610 | 900/1300 | 9.55 | <100/130 | <200/240 | <140/170 | <180/220 | <200/240 | ||||||||
| 610×610 | 1800/2600 | 17.90 | ||||||||||||||
| 1220×610 | 3400/4800 | 35.21 | ||||||||||||||
| 1220×915 | 4200/6800 | 52.99 | ||||||||||||||
Note: other specifications can be customized according to requirements
| Filter Grades Available | ||||||||||||||
| Grade | Efficiency @MPPS* | Application | ||||||||||||
| E10 | >85% | For The Removal of Smoke or Very Low Grade Cleanroom Applications | ||||||||||||
| E11 | >95% | Start of HEPA Range – Not Available | ||||||||||||
| E12 | >99.5% | Lower Grade Cleanrooms | ||||||||||||
| H13 | >99.95% | Cleanrooms And Industrial Applications | ||||||||||||
| H14 | >99.995% | Higher Grade Cleanrooms And Industrial Applications | ||||||||||||
| U15 | >99.9995% | Not often Requested Due to High Resistance / Energy Consumption | ||||||||||||
| U16 | >99.9997% | |||||||||||||

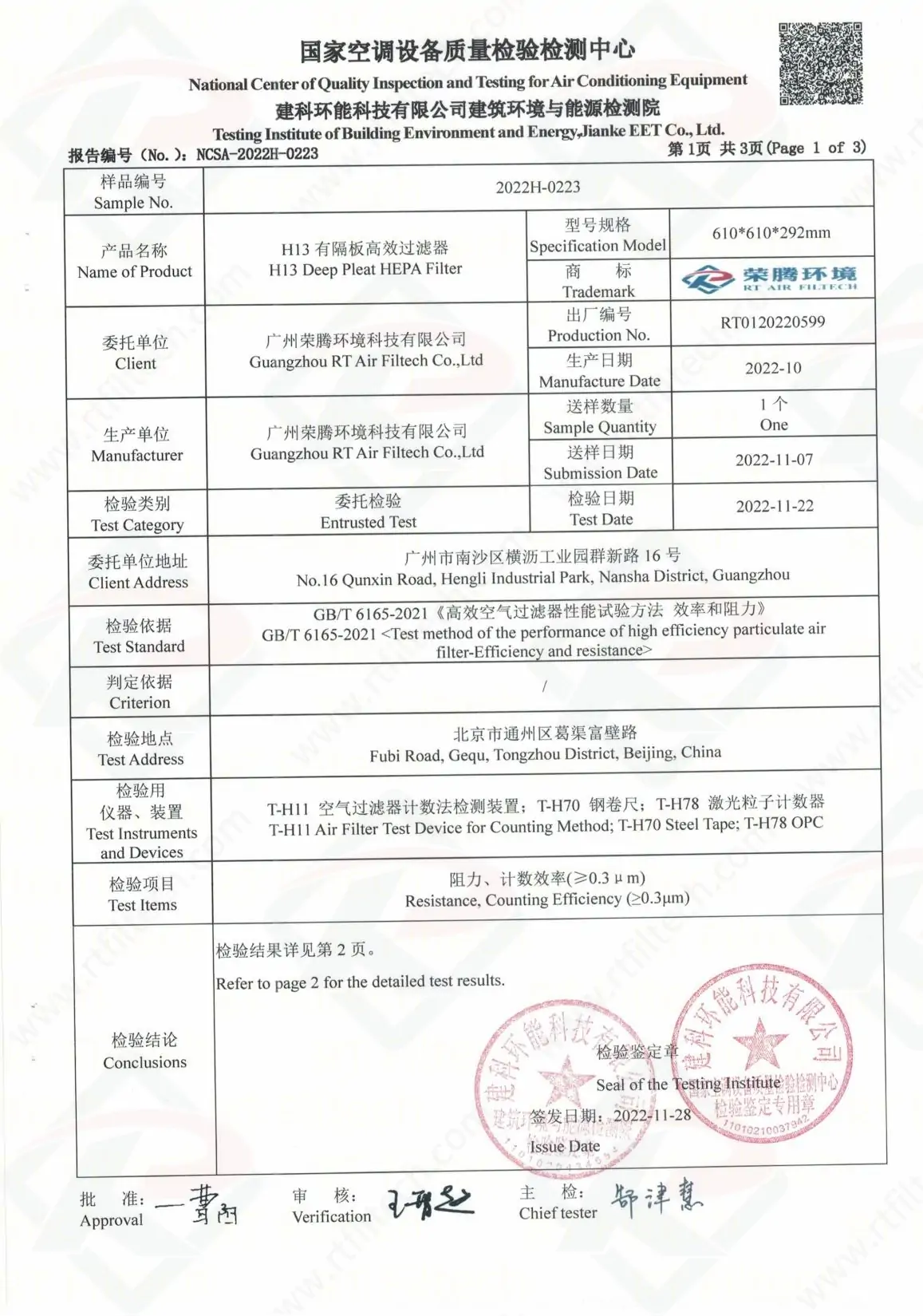

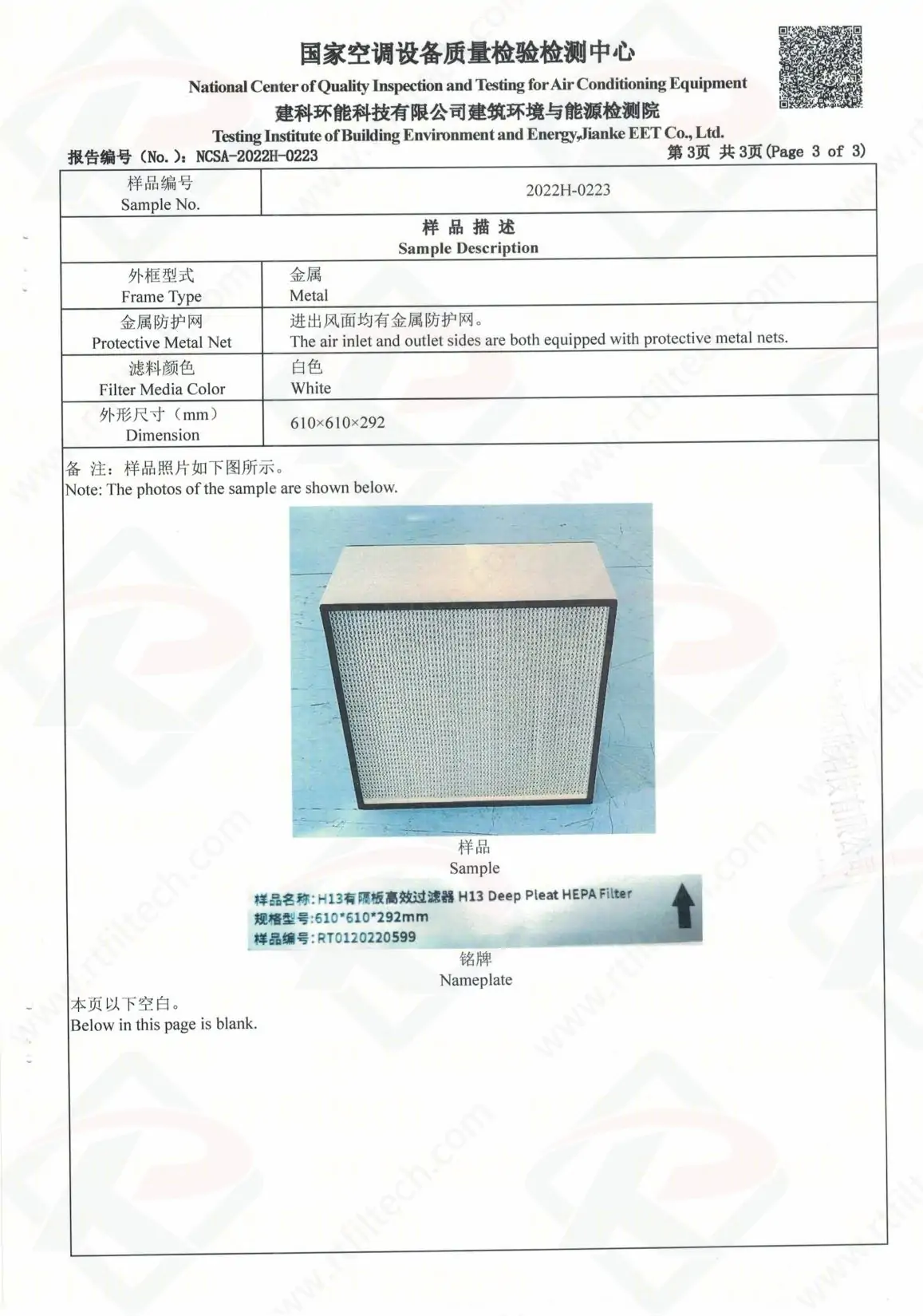

Certificates
