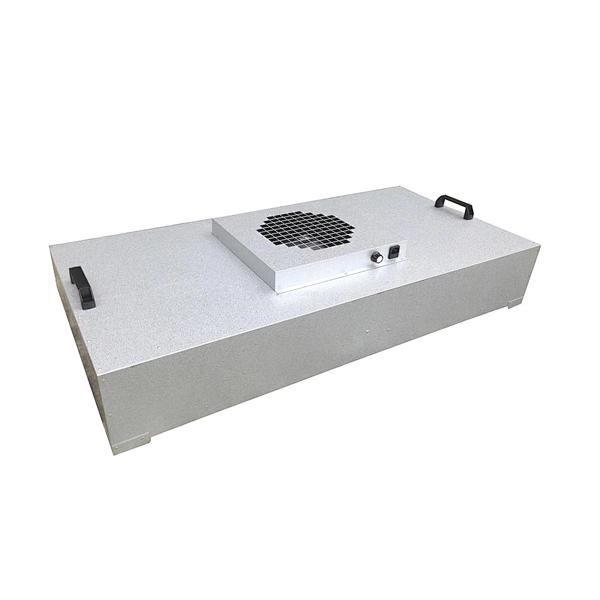

FFU

Construction

Box body material: the box body can be made of high-quality aluminum zinc plate or stainless steel plate;

Fan device: FFU special high-efficiency direct-drive centrifugal fan with small vibration and stable operation.

Low noise and maintenance-free, with a working life of more than 50,000 hours;

Air filtration device: equipped with HEPA filter without or with partition produced by our company, the filtration efficiency is H13

(MPPS) to ensure the purification level;

Control system: electronic board, visual display control, three-speed adjustment;

Parameter standard: noise level ≤58dB, average surface wind speed 0.45m/s±20%, air volume 1000m3/h,

Power: 130W, AC 220V/50hz;

Airflow uniformity: Guide plate designed in accordance with the principle of airflow fluid is adopted to ensure the airflow uniformity reaches 10%-20%;

Other configuration: the primary filter installation can be provided, which requires the customer’s request, but the installation of the primary filter is not recommended; a Group control system can be provided.
