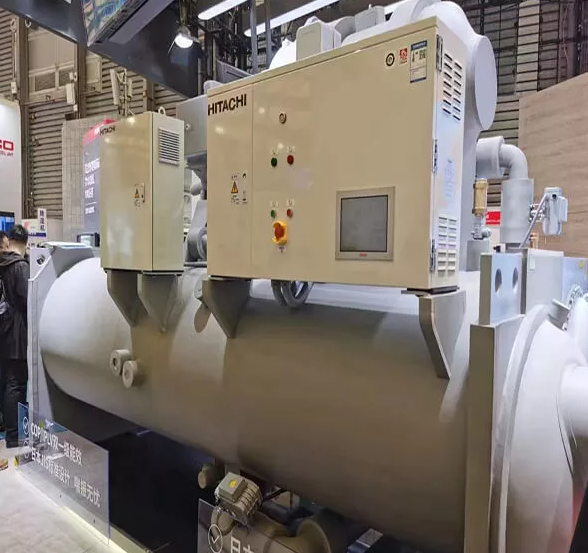

Hitachi water cooled chiller-(WZPY Series)

Hitachi water cooled chiller-(WZPY Series)

MAIN FEATURES

– 0 ozone depletion potential (ODP) HFC134a refrigerant

– R134a G-type twin-screw compressor

– High efficiency shell-and-tube flooded evaporator

– User-friendly touch LCD Panel

Nominal capacity range:189~1815kW(53~516RT) Boiling refrigeran

Category: Water Cooled Tags: 100 Tr, 125TR, 155TR, 200 TR, 250 TR, 300 Tr, 350 TR, 400 TR, Water-Cooled Chiller, WZPY Brand: Hitachi

Description
Reviews (0)

Description

Product Description

In 1972, Hitachi developed the world’s first semi-hermetic twin-screw compressor. So far, 107 patents have been obtained.

we havedelivered more than 200,000 Hitachi twin-screw compressors to countries around the world where they continue to meet essential air conditioning needs.

MAIN FEATURES

– 0 ozone depletion potential (ODP) HFC134a refrigerant

– R134a G-type twin-screw compressor

– High efficiency shell-and-tube flooded evaporator

– User-friendly touch LCD Panel

Nominal capacity range:189~1815kW(53~516RT) Boiling refrigerant

BETTER PERFORMANCE AND ENERGY SAVING

Hitachi’s new water-cooled chiller(WZPY Series) adopts more efficient semi-hermetic twin-screw compressor and better shell-and tube flooded evaporator brings you significant energy saving experience under stable and durable operation

Our new water-cooled chillers adopt G-type semi-hermetic twin-screw compressors that only available to R134a

refrigerant

Water Cooled Screw Chiller RCUF50WZPY G-type semi-hermetictwin-screw compressors

WIDE LINE-UP

To meet the need of air conditioning systems for large facilities and the demand for higher capacity industrial cooling systems

Water Cooled Screw Chiller RCUF50WZPY WIDE LINE-UP

OIL SEPARATOR

Cyclone Oil Separator,Low Pressure Drop, Less Energy Consumption

HIGH EFFICIENCY FLOODED TYPE EVAPORATOR

Water Cooled Screw Chiller RCUF50WZPY HIGH EFFICIENCY FLOODED TYPE EVAPORATOR

CLEAR USER-FRIENDLY LCD TOUCH CONSOLE

The display makes it easy to view the current operating Main Page status and simplify the setting procedure.

Various parameters can be confirmed at a glance.

Regardless of operating status,the console allows you to set a variety of operation modes.

A warning log function makes it possible to recall the latest 10 recent warning events.

Water Cooled Screw Chiller RCUF50WZPY

BUILDING MANAGEMENT SYSTEM (BMS)

Water Cooled Screw Chiller RCUF50WZPY

SPECIFICATIONS

MODEL			RCUF50 WZPY	RCUF65 WZPY	RCUF80 WPY	RCUF110 WZPY	RCUF130 WZPY
Power Source			Main (AC3φ) 380,415V/50Hz, Control (AC1φ) 220,240V/50Hz
Nominal Cooling Capacity		kW	189.9	238.1	297.8	382.9	477.9
Nominal Cooling Capacity		RT	54.01	67.71	84.69	108.9	135.9
Input Power		KW	32.16	40.31	50.45	64.85	80.93
Compressor	Model	GSCCWZ	50	60	40	50	60
Compressor	Quantity	Set	1	1	2	2	2
Number of Circuit		–	1	1	2	2	2
Chilled Water	Flow Rate	m3/h	32.66	40.94	51.23	65.86	82.19
Chilled Water	Pressure drop	kPa	74.5	75.7	58.4	60.5	61.5
Cooling Water	Flow Rate	m3/h	40.82	51.18	64.03	82.33	102.7
Cooling Water	Pressure drop	kPa	57.1	59.5	57.4	57.4	57.4
Continuous Capacity Control		%	25~100
Refrigerant		–	R134a
Evaporator	Type	–	Shell-and-Tube Flooded Type
	Number Of Pass	–	2
	Adapter Tube	–	DN65	DN65	DN125	DN125	DN125
Condenser	Type	–	Shell-and-Tube Type
	Number Of Pass	–	2
	Adapter Tube	–	DN65	DN65	DN125	DN125	DN125
Safety devices		–	Three-Phase Over current Relay, High-Pressure Switch,High and Low-Pressure Control, Oil Heater, Internal Thermostat for Compressor Motor, Freeze Protection Control, Reverse Phase Protection Control, Discharge Gas Overheat Protection,Compressor frequent ON/OFF control, Pressure Relief Valve,Overcurrent Relay and Water Pressure Difference Switch.
Dimension	Length	mm	2200	2200	4000	4000	4000
	Width	mm	1350	1350	1360	1360	1360
	Height	mm	1600	1600	1600	1600	1600
Net Weight		kg	1865	1965	3215	3365	3515

MODEL			RCUF150 WZPY	RCUF200 WZPY	RCUF250 WPY	RCUF156 WZPY	RCUF211 WZPY
Power Source			Main (AC3φ) 380,415V/50Hz, Control (AC1φ) 220,240V/50Hz
Nominal Cooling Capacity		kW	548.9	732.1	914.9	548.9	732.1
Nominal Cooling Capacity		RT	156.1	208.2	260.2	156.1	208.2
Input Power		KW	87.28	116.4	145.5	93.10	124.7
Compressor	Model	GSCCWZ	150	200	250	150	200
Compressor	Quantity	Set	1	1	1	1	1
Number of Circuit		–	1	1	1	1	1
Chilled Water	Flow Rate	m3/h	94.41	125.9	157.4	94.41	125.9
Chilled Water	Pressure drop	kPa	50.4	50.4	50.4	50.2	50.2
Cooling Water	Flow Rate	m3/h	118.0	157.4	196.7	118.0	157.4
Cooling Water	Pressure drop	kPa	58.4	58.5	58.4	84.6	86.8
Continuous Capacity Control		%	25~100
Refrigerant		–	R134a
Evaporator	Type	–	Shell-and-Tube Flooded Type
	Number Of Pass	–	2
	Adapter Tube	–	DN150
Condenser	Type	–	Shell-and-Tube Type
	Number Of Pass	–	2
	Adapter Tube	–	DN150
Safety devices		–	Three-Phase Over current Relay, High-Pressure Switch,High and Low-Pressure Control, Oil Heater, Internal Thermostat for Compressor Motor, Freeze Protection Control, Reverse Phase Protection Control, Discharge Gas Overheat Protection,Compressor frequent ON/OFF control, Pressure Relief Valve,Overcurrent Relay and Water Pressure Difference Switch.
Dimension	Length	mm	3373	3373	3373	3320	3320
	Width	mm	1715	1715	1715	1700	1700
	Height	mm	2311	2311	2311	2258	2258
Net Weight		kg	3917	4598	4897	3734	4140

MODEL			RCUF311 WZPY	RCUF366 WZPY	RCUF421 WPY	RCUF471 WZPY	RCUF521 WZPY
Power Source			Main (AC3φ) 380,415V/50Hz, Control (AC1φ) 220,240V/50Hz
Nominal Cooling Capacity		kW	1098	1281	914.9	548.9	732.1
Nominal Cooling Capacity		RT	312.3	364.3	416.3	468.4	520.4
Input Power		KW	183.3	211.3	240.8	271.4	300.4
Compressor	Model	GSCCWZ	150	200+150	200	250+200	250
Compressor	Quantity	Set	2	1+1	2	1+1	2
Number of Circuit		–	1	1	1	1	1
Chilled Water	Flow Rate	m3/h	188.9	220.3	251.8	283.3	314.7
Chilled Water	Pressure drop	kPa	67.3	69.3	71.3	73.3	75.3
Cooling Water	Flow Rate	m3/h	236.1	275.4	314.7	354.1	393.4
Cooling Water	Pressure drop	kPa	81.6	84.2	86.5	88.8	91.2
Continuous Capacity Control		%	25~100
Refrigerant		–	R134a
Evaporator	Type	–	Shell-and-Tube Flooded Type
	Number Of Pass	–	2
	Adapter Tube	–	DN200
Condenser	Type	–	Shell-and-Tube Type
	Number Of Pass	–	2
	Adapter Tube	–	DN200
Safety devices		–	Three-Phase Over current Relay, High-Pressure Switch,High and Low-Pressure Control, Oil Heater, Internal Thermostat for Compressor Motor, Freeze Protection Control, Reverse Phase Protection Control, Discharge Gas Overheat Protection,Compressor frequent ON/OFF control, Pressure Relief Valve,Overcurrent Relay and Water Pressure Difference Switch.
Dimension	Length	mm	4672
	Width	mm	1766
	Height	mm	2319
Net Weight		kg	7021	7303	7581	7822	8062

DIMENSIONS –RCUF50 / 65WZPY

Water Cooled Screw Chiller RCUF50WZPY
